Description

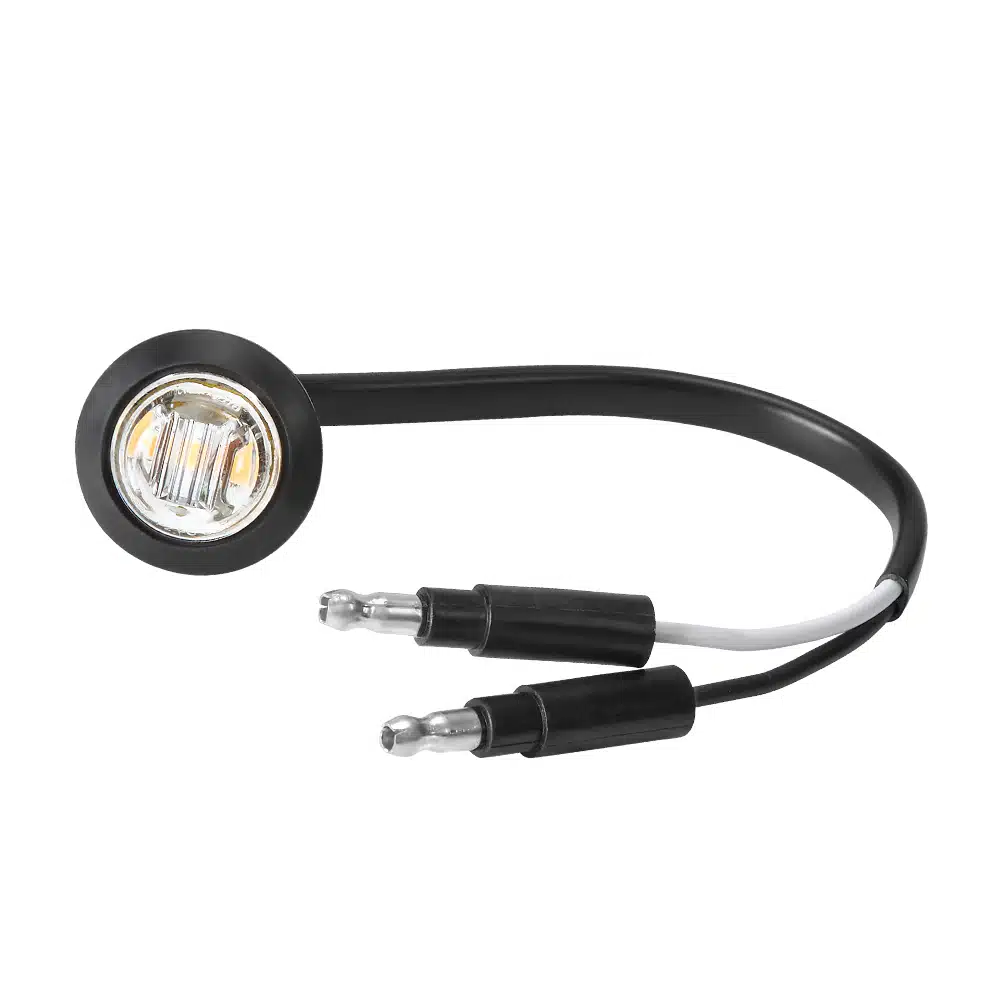

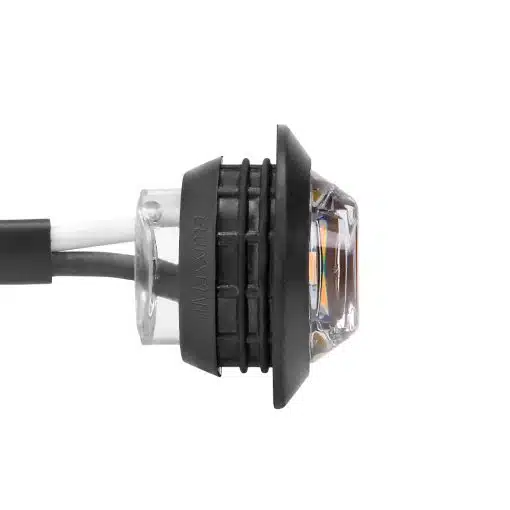

3/4″ Round P2/P3/PC2 Clearance Marker Red
Clearance marker lamp. With 3 LEDs and a domed lens design, it provides a wide 180-degree horizontal beam for maximum visibility. It complies with P2 P3 and PC2 DOT requirements. It includes the mounting grommet which requires a 3/4″ hole.
Features & Benefits:
- Includes Mounting Grommet
- Requires 3/4″ Hole
- 180° Visibility – PC/PC2 Rated
- Also Available in Retail Pack (M09300R)
- Optional Steel Bezel (M50112)
- Polycarbonate Lens & Housing
- 5 Year Warranty
Specifications:
- LEDs 3
- Voltage 12.8VDC
- Amp Draw 60mA
- Dimensions 3/4″ Diam. x 1.0” D
- Mounting Grommet, 3/4″ Hole Cutout
- Connector 2 Jacketed Leads, .180 Bullets, 7″
- Legal Heading P2 P3 PC2
- DOT/SAE J592 J2042
M09300YRC
